Understanding Ampacity and Wire Sizing: Electrical Basics Explained
The electrical systems that power our homes and commercial buildings are complex networks of conductors and protective devices. These systems rely on precise measurements and standardized components to function safely. If just one variable is miscalculated, the entire system can fail, creating severe safety hazards like electrical fires or equipment damage. Because states like New Jersey have strict enforcement of the NEC, learning these foundational principles is a core focus of a comprehensive Electrician Training Program in New Jersey, where students acquire the technical knowledge required to excel in the electrical trade.
Of particular importance is the relationship between ampacity and wire gauges. Electricity naturally generates heat as it moves through a conductor. If a wire is too small for the specific electrical load, the resistance causes the temperature to spike, melting the insulation and potentially igniting nearby building materials. To mitigate this risk, the National Electrical Code (NEC) dictates an exact science for wire sizing based on current levels and environmental conditions. This guide details the legal requirements and physical science behind ampacity to ensure safe, code-compliant installations.
Key Takeaways
Ampacity: The maximum amount of electrical current, measured in amperes, that a conductor can carry continuously without exceeding its temperature rating.
American Wire Gauge (AWG): The standardized system used in North America to specify the diameter of electrically conducting wires; notably, higher numbers indicate thinner wires.
Continuous Load: An electrical load expected to continue for three hours or more, which requires a 20% safety margin according to NEC standards.
Temperature Rating: The maximum temperature an insulation jacket can withstand; common ratings include 60°C, 75°C, and 90°C.
Ambient Temperature: The temperature of the air surrounding a conductor; temperatures above 86°F (30°C) require the reduction of a wire's allowable ampacity.
Voltage Drop: The loss of electrical potential as current travels through a circuit, which must be managed by increasing wire size over long distances.
What is Ampacity?
Ampacity is the measure of the maximum amount of electric current a conductor can carry before its insulation reaches a critical temperature threshold. The term combines "amperes" and "capacity." Understanding this concept is vital for preventing the thermal breakdown of electrical systems.

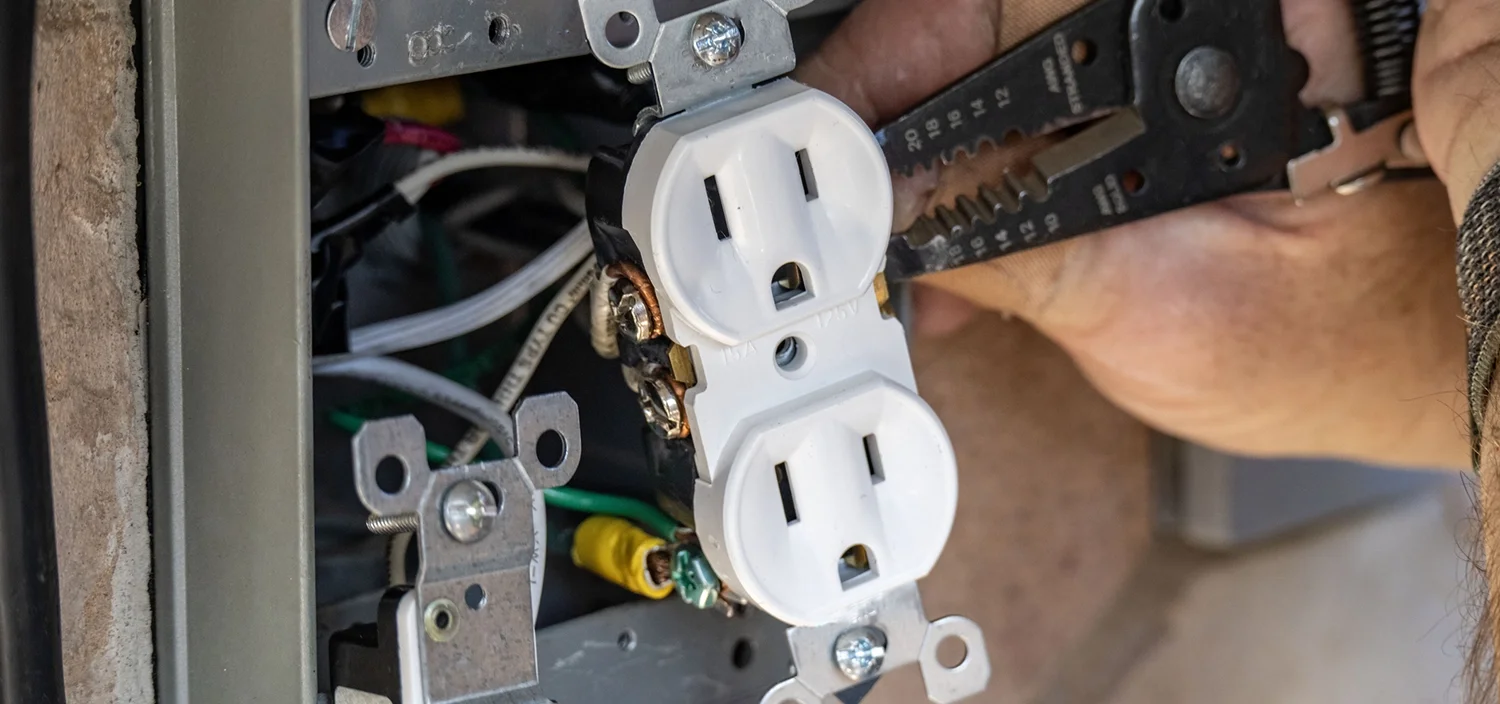

Electricity enters a building through a service panel, where it is diverted into various branch circuits. Each circuit is protected by a circuit breaker designed to trip if the current exceeds the ampacity of the connected wires. If a wire's ampacity is lower than the breaker's rating, the wire becomes a heating element, creating a fire hazard.
Copper and aluminum are the standard conductors used in modern wiring. These metals act as the path for electron flow. If too many electrons are forced through a wire with a small cross-sectional area, friction at the molecular level generates excessive heat. For example, a high-draw appliance like an electric dryer requires significantly higher ampacity (and thus thicker wire) than a simple bedroom lighting circuit.
Decoding the American Wire Gauge (AWG) System
The American Wire Gauge (AWG) system is the standardized measurement used to determine the diameter of conductors. It is important to note that AWG measures the metal conductor itself, not the surrounding insulation.
The AWG system features an inverse relationship: as the gauge number increases, the wire diameter decreases.
14 AWG: A thin wire commonly used for 15-amp lighting circuits.
12 AWG: A slightly thicker wire used for standard 20-amp kitchen and bathroom receptacles.
10 AWG: Thicker still, rated for 30-amp loads like electric water heaters.
The system scales up to 1/0 (one-aught), 2/0, 3/0, and 4/0. A 4/0 wire is approximately 0.46 inches in diameter and is used for heavy-duty main service entries. Since New Jersey's Construction Code (UCC) requires exact inspection standards for these main service upgrades, getting these 4/0 calculations right is a core part of the training at a state-approved Electrician School in New Jersey.
Comparing Standard Wire Sizes and Breaker Amps
| Copper Wire Gauge (AWG) | Max Breaker Size (Amps) | Maximum Wattage (at 120V) | Common Residential Applications |
|---|---|---|---|
| 14 AWG | 15 Amps | 1,800 Watts | Lighting, bedroom outlets |
| 12 AWG | 20 Amps | 2,400 Watts | Kitchen/Bath, Microwaves |
| 10 AWG | 30 Amps | 3,600 Watts | Electric Water Heaters, AC units |
| 8 AWG | 40 Amps | 4,800 Watts | Electric ranges, cooktops |
| 6 AWG | 50-60 Amps | 6,000+ Watts | Central HVAC, EV Chargers |
Copper vs. Aluminum Conductors: Sizing Differences
While both copper and aluminum are efficient conductors, they possess different physical properties that affect ampacity.
Copper: Highly conductive, longer-lasting, and resistant to thermal expansion. It is the preferred material for most interior branch circuits but is more expensive.
Aluminum: Lighter and more cost-effective for large service feeders. However, it is less conductive and more prone to corrosion and "cold flow" (expansion and contraction).
Since aluminum is less conductive, it has a lower ampacity than copper of the same size. The NEC mandates that if you substitute copper for aluminum, you must "up-size" the conductor by one or two gauge sizes to carry the same amount of current safely.
The Golden Rule of Wire Sizing: The 80% Rule
The NEC dictates a safety protocol often referred to as the 80% Rule for continuous loads. A continuous load is defined as any electrical draw that continues for three hours or more, such as commercial lighting, HVAC systems, or EV charging stations.
When current flows continuously, heat builds up in the conductors and at the breaker terminals. To prevent thermal overload, the circuit must be designed with 20% headroom.
Example: On a 20-amp circuit, a continuous load should not exceed 16 amps ($20 \times 0.8 = 16$).
If the intended device draws more than 16 amps continuously, the electrician must up-size the breaker and the wire to a 25 or 30-amp rating. This ensures the system operates well below the insulation's melting point.
How Temperature Ratings Affect Wire Sizing
The temperature rating printed on a wire’s insulation jacket indicates the maximum heat the material can withstand. Common insulation types include THHN (Thermoplastic High Heat-resistant Nylon-coated) and XHHW (Cross-linked High Heat-resistant Water-resistant).
The NEC provides ampacity tables that coincide with temperature ratings of 60°C, 75°C, and 90°C. For instance, a 14 AWG copper wire is rated for:
15 Amps at 60°C
20 Amps at 75°C
25 Amps at 90°C
However, the final ampacity is limited by the temperature rating of the equipment terminals. If a breaker is only rated for 60°C, the wire must be sized based on the 60°C column. Furthermore, standard NM-B (Romex) cable used in residential walls is legally restricted to the 60°C column to prevent the jacket from melting inside insulated cavities. While a comprehensive program provides your state-mandated foundation, taking specialized Electrician Classes & Courses is an excellent way for working professionals to continuously upskill, master specific technical tasks, and stay current with emerging green technologies throughout their careers.
Advanced Ampacity Adjustments: Ambient Heat and Conduit Fill
Licensed professionals must look beyond basic charts to account for real-world environmental factors.
Ambient Heat Adjustment
The NEC assumes a standard ambient temperature of 86°F (30°C). If wiring is installed in an area that exceeds this temperature, such as a New Jersey attic in July, the wire cannot dissipate heat as effectively. In these cases, the electrician must apply a mathematical derating factor to lower the allowable ampacity.
Conduit Fill and Bundle Adjustment
Conduit (PVC, EMT, or RMC) protects wiring, but it also traps heat. When three or more current-carrying wires are bundled together in a single conduit, the combined heat raises the internal temperature. To prevent a fire hazard, the NEC requires "conduit fill" adjustments, significantly dropping the allowable ampacity for each wire in the bundle. Mastering these complex calculations is essential for passing the state exam and completing your Electrician License renewal to stay compliant with state standards.
The Hidden Danger: Voltage Drop
Even the best conductors provide some level of resistance. As current travels over long distances, the voltage decreases, a phenomenon known as voltage drop.
While minor voltage drop might cause dimming lights, significant drops can damage sensitive electronics and cause motors to pull more current, leading to overheating. The NEC recommends that voltage drop should not exceed 3% for branch circuits or 5% for the total system. To combat this over long distances, electricians must use thicker wires (lower AWG numbers) to reduce resistance and maintain a steady voltage at the destination.
Starting a Career in the Electrical Trade in NJ
Understanding the physics of ampacity and wire sizing is not just a skill; it is a legal requirement for anyone entering the trade. The National Electrical Code provides the framework for these calculations to ensure every building remains safe from electrical hazards. Taking that vital first step means securing your technical foundation early. The Training Center is a top-rated Electrician School in New Jersey providing the strict code instruction needed to succeed on the job site. Our programs turn complex NEC ampacity charts and voltage drop calculations into the technical skills needed to confidently start a career as an electrician.
